Energy Storage Test System
Complete test solutions for Energy Storage batter scales from kW to MW, up to 2500V.
Key words：
Classification：
Energy Storage Test System
Download：
Energy Storage Test System
Energy Storage Test System
Stropower Energy Storage Test System is specially engineered for testing high-power, high-voltage energy storage systems. With voltage ratings up to 2500V and power ratings up to 7MW, it is built to handle demanding applications. The system complies with both international and domestic standards, including UL 1973, IEC 62619 and GB/T 36276.
Stropower Energy Storage Test System provides a comprehensive suite of testing capabilities to generate a detailed performance profile. This enables precise evaluation, inspection, and screening of battery modules across various specifications, offering a reliable foundation for the research, production, and application of energy storage batteries.
Feature of Stropower Energy Storage Test System

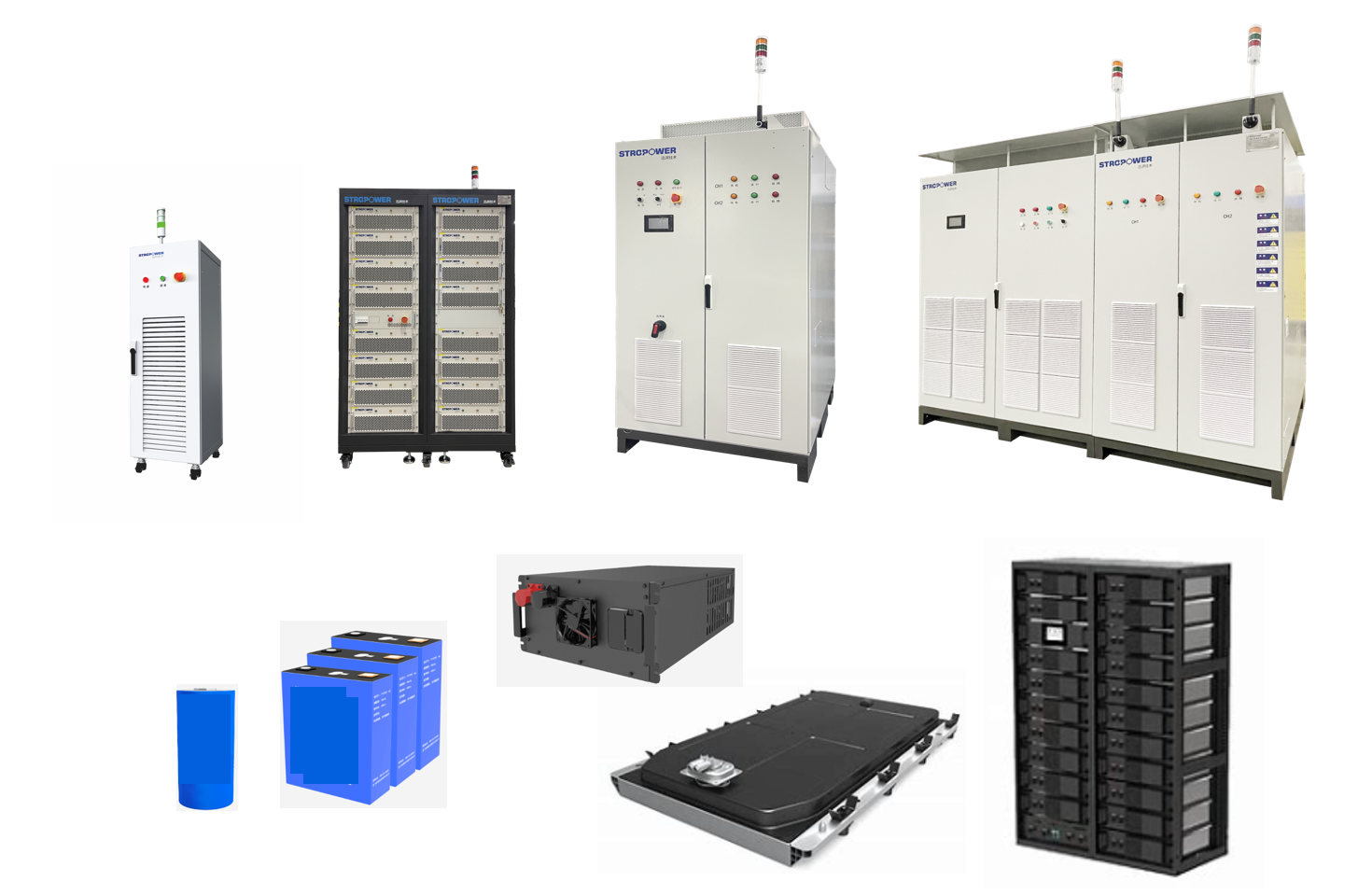

∗ Wide power range for testing on Cell | Module | PACK | Rack (Cluster) | ESS from 2 kW to 2 MW
∗ Wide voltage range for testing on Cell | Modul | PACK | Rack (Cluster) | ESS from 6 V to 2500V
∗ Distributed Cell Testing System for cost-effective test labs with DC bus line and sharing few AFEs thus saves equipment investment and electricity cost due to local regenerative power consumption between local channels
∗ High regen energy feedback efficiency to grid ratio
∗ Complete and extendable functionalities for energy storage applications covering all aspects of tests from performance to durability and safety
∗ With industrial advancing server software ENOVA which can operate hundreds of channels from one terminal
∗ Support power and current extension with customization
∗ Support negative voltage test (Forced discharging test) (*request to technical support team for more information)

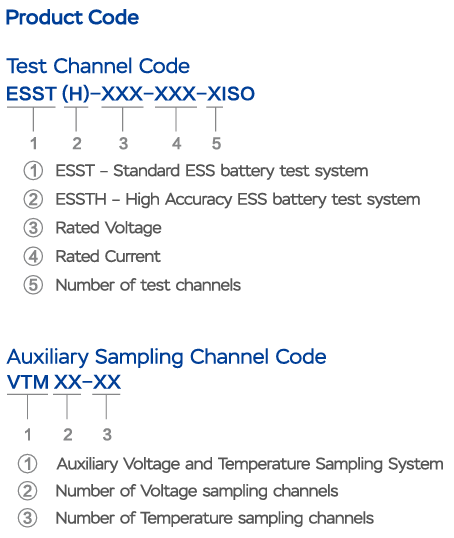

Parameters and Product Code

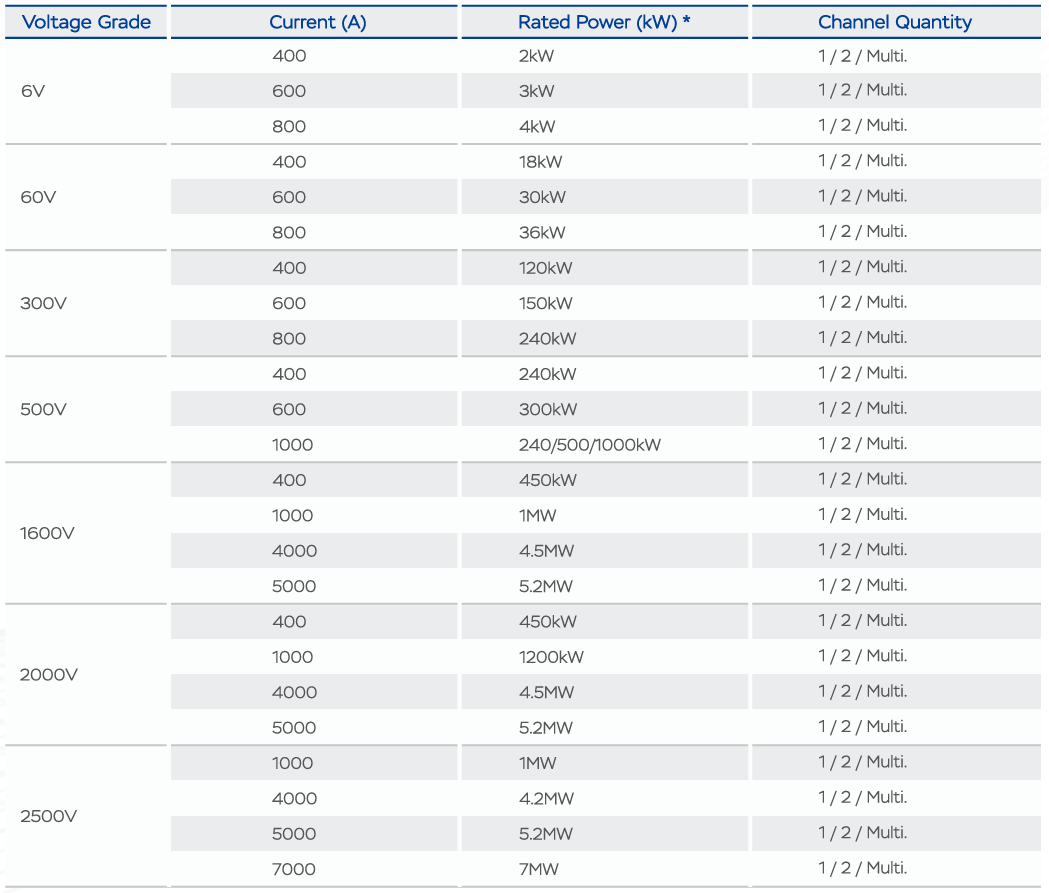

∗ Only commonly used specification are listed in this table, please contact Stropower for further customization options.
∗ Rated Power listed in the table:
6V 60V are related based on single-channel power,
300V and above are rated with the power of full equipment. Power distribution between channels are customizable.

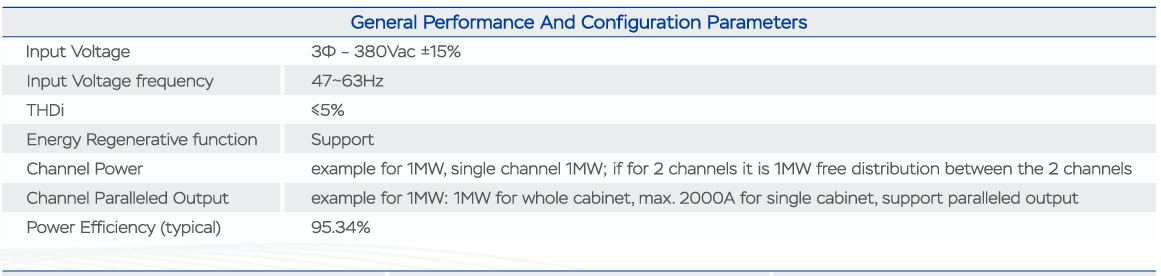

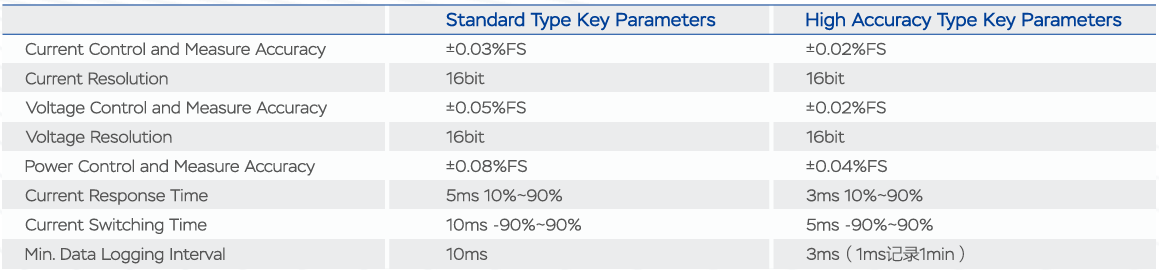

Operating Parameters and Specifications

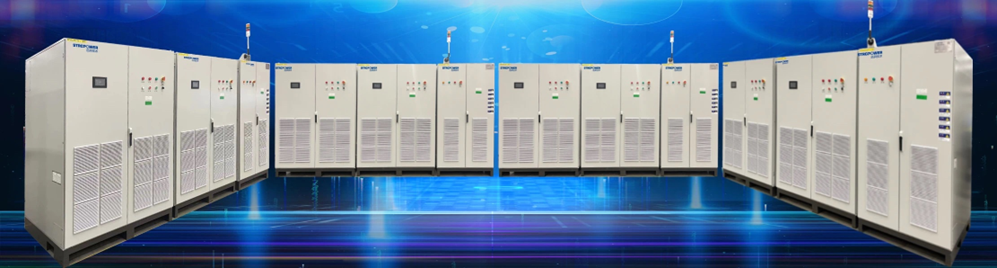

Container Sale ESS Test System - MW

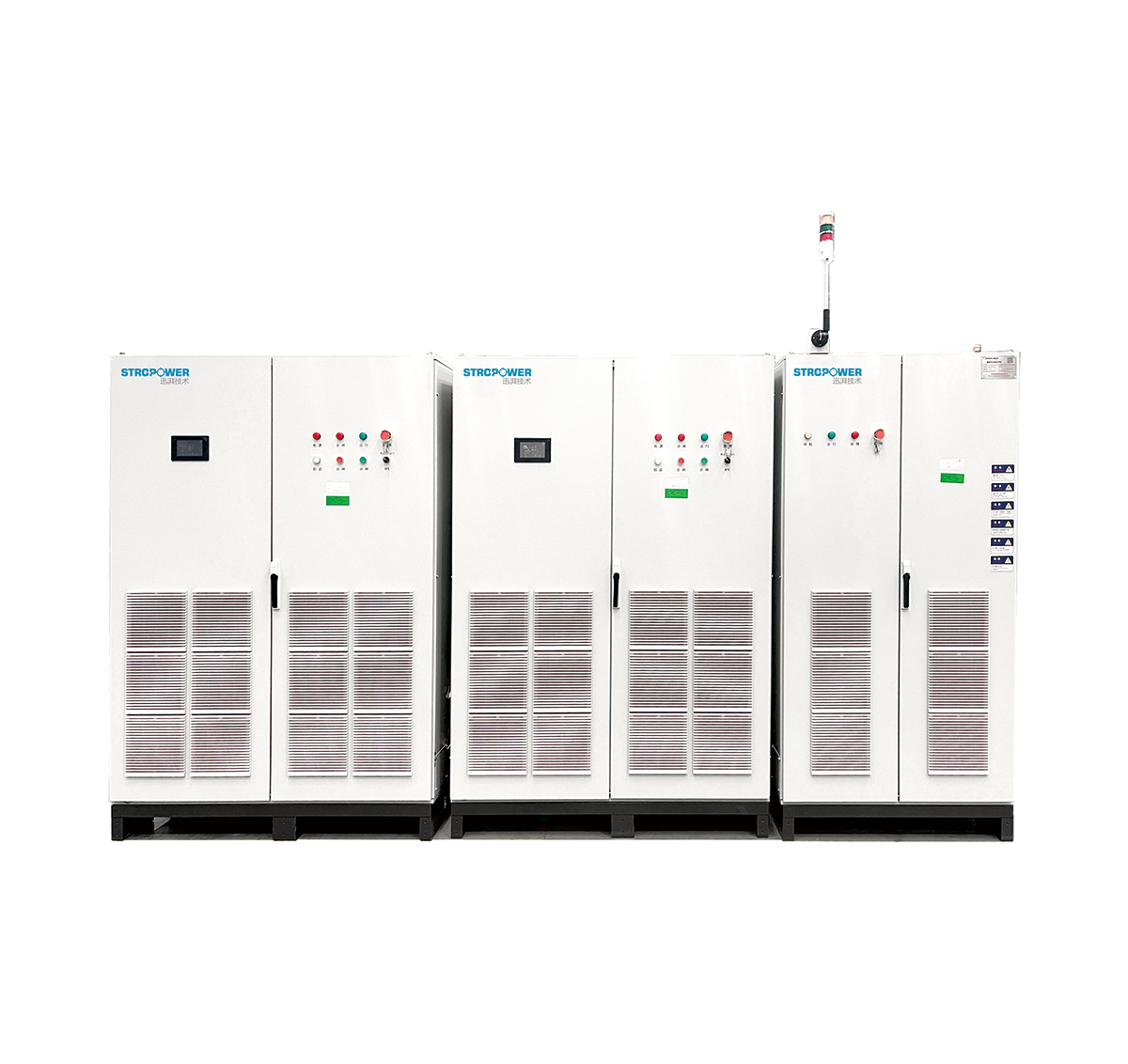

2500V-4000A-4.2MW Container Level ESS Cycling Test System
∗ High quality energy feedback to the grid, with overall power efficiency up to 95.34%.

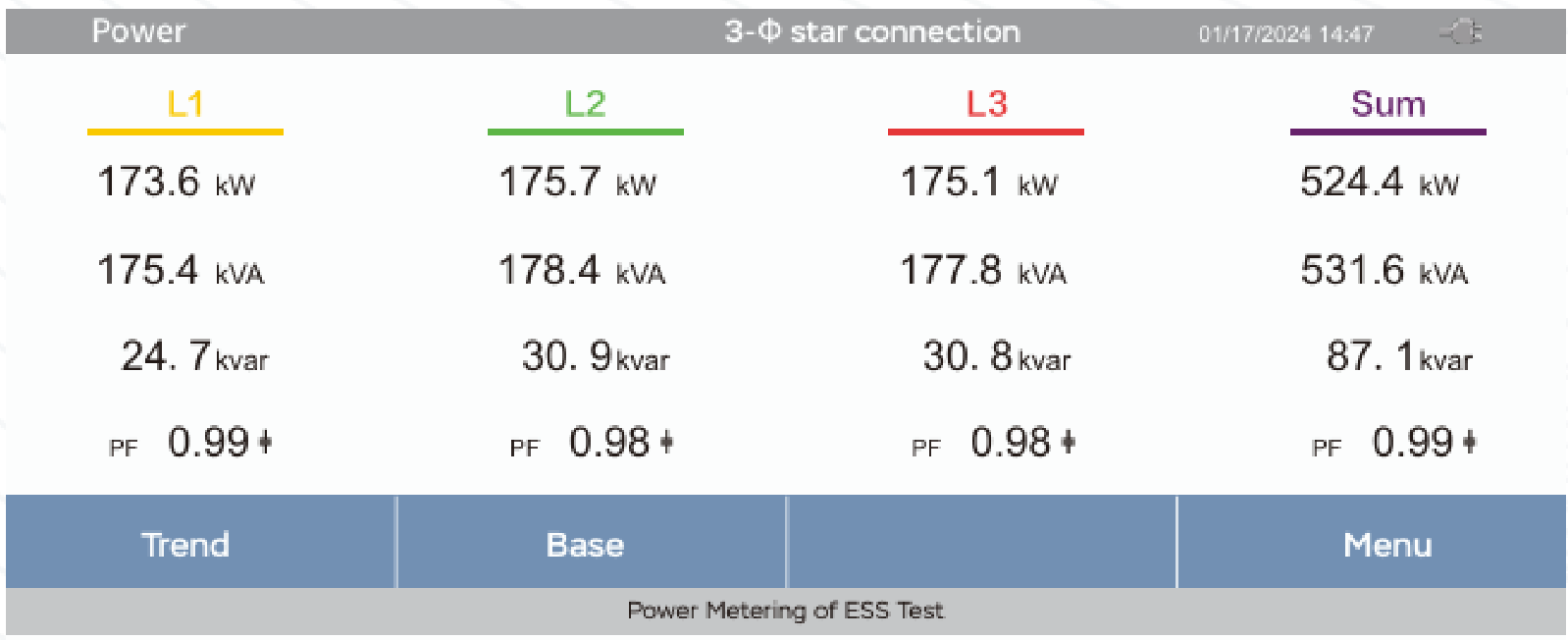

From test data: 524.4kW input power and 500kW output power, overall power Efficiency is 95.34%.

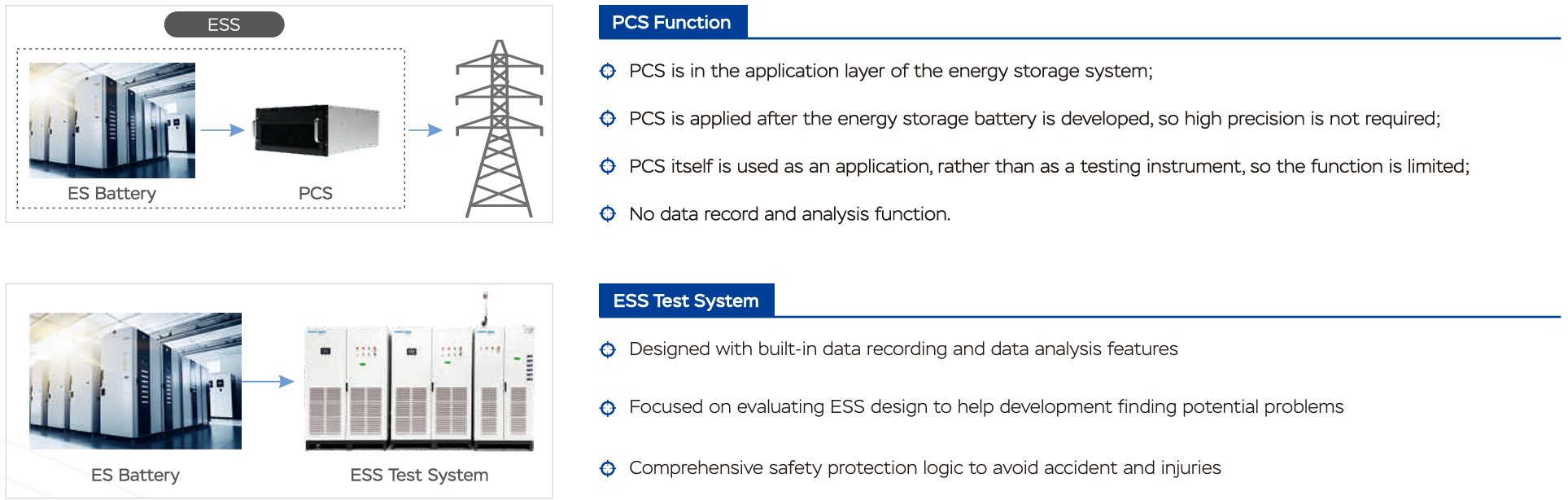

∗ Stropower ESS test system is specially developed for battery testing, compared to PCS in ESS, it can provide diagnostic tool for identifying battery or ESS system potential problems.

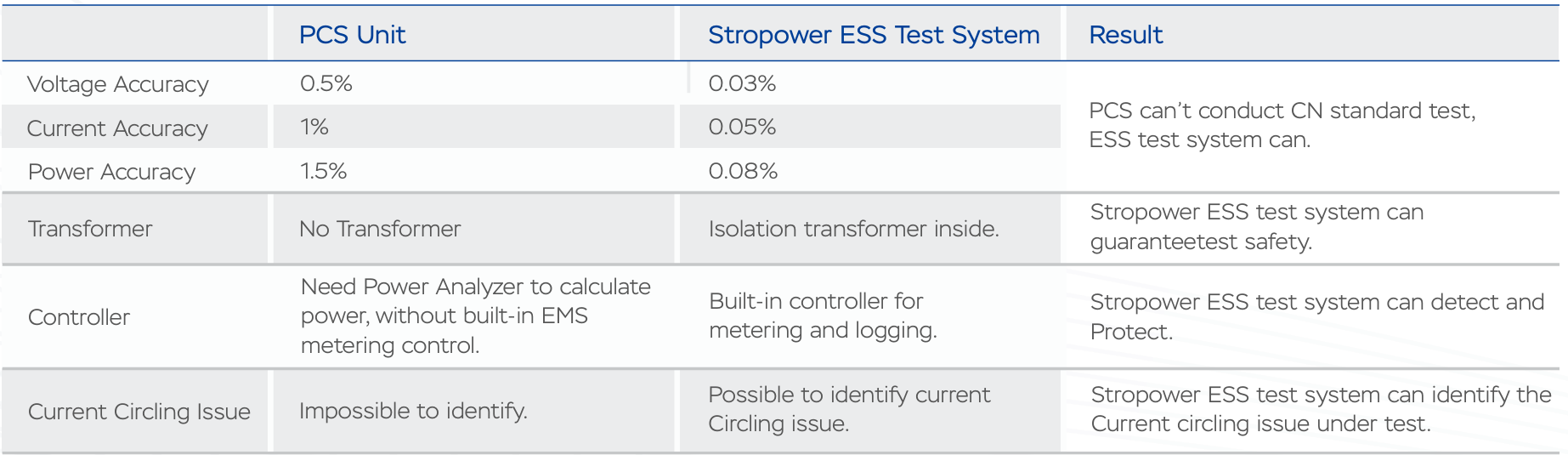

∗ Comparison between Cycling Charging / Discharging Equipment and PCS
Application User Case
